CLUTCH FACINGS

Clutch facings have been our principle basic business since we began manufacturing back in 1953. Over these years diffent formulations have been developed to cover the demand from all sectors improving them over the years. In time we reached a very high standard and were finaly approved by the OE of clutch manufacturing. There are special qualities for almost any kind of vehicle, from standard small cars, to heavy-duty vehicles, tractors, trucks and many kinds of racing cars.

Materials

NAME STATIC COEF. (U) DYNAMIC COEF. (U) T FADING (ºC) WEAR RATE (mm3KWH) COMPRESSIVE STRENGTH (MPa)
G95 0.60±0.05 0.55±0.05 >300 25 (at 150 ºC) 120±5 PDF
JTC 0.45±0.05 >400ºC 145±5 PDF
HDS57 0.53±0.05 0.50±0.05 >350 30 (at 150 ºC) 120±5 PDF
HCC 0.45±0.05 0.45±0.05 >400 35 (at 150 ºC) 140±5 PDF
SF-MC2 0.45±0.05 0.40±0.05 >400 30 (at 150 ºC) 306±5 PDF
SF-2SB 0.65±0.05 0.70±0.05 >500 60 (at 150 ºC) 300±50 PDF
VH-03 0.44±0.05 0.38±0.05 >350 30 (at 150 ºC) 120±5 PDF
PRODUCTS UNDER REQUEST / We produce all sort of parts according drawings or samples

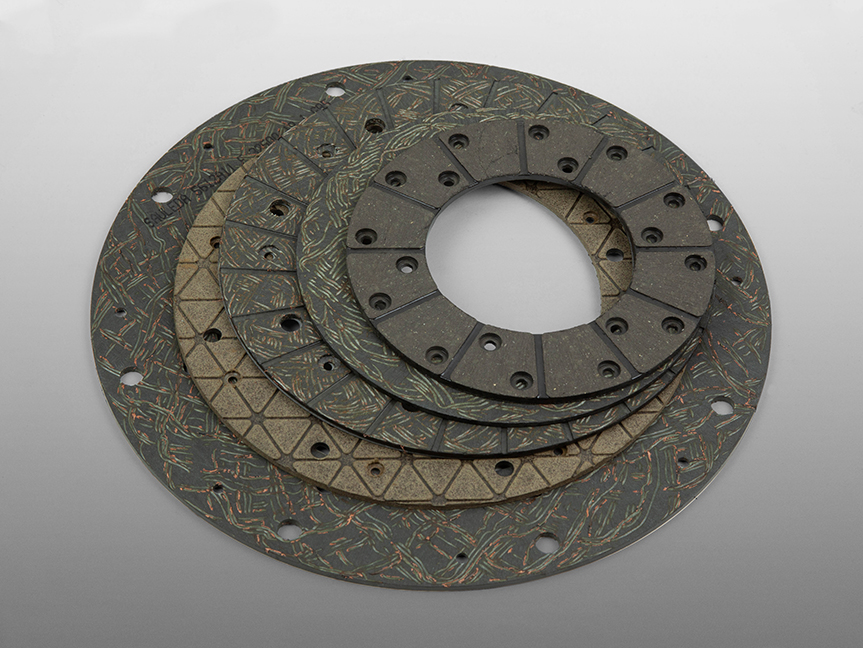

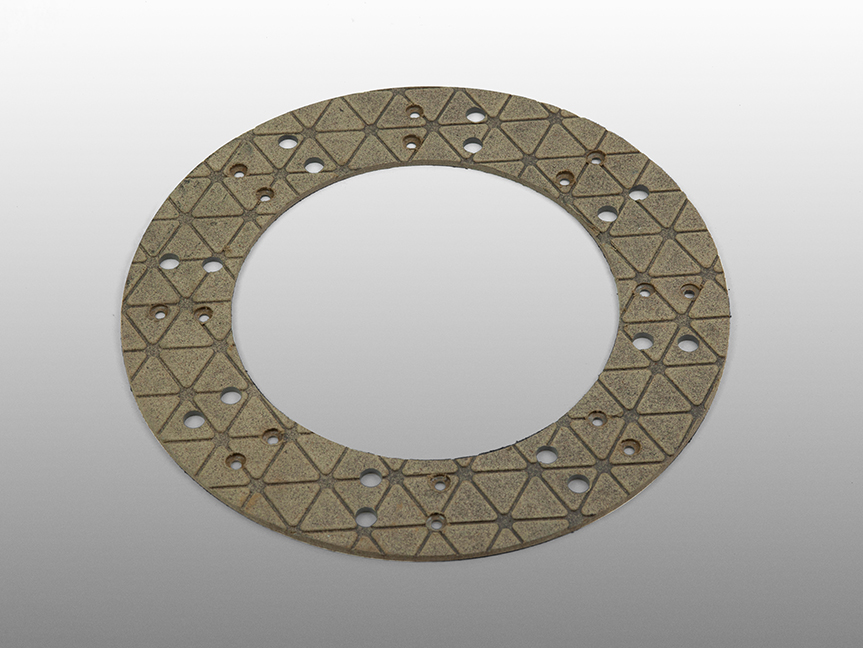

PRODUCT EXAMPLES
