Industrial rings

We manufacture rings for any dimension, from the smallest pucks, up to larger discs of more than 900mm in diameter.

Thanks to the machinery available in our plant there is almost no model we cannot supply.

For the most demanding applications we have the most advanced solutions.

PRODUCTS UNDER REQUEST / We produce all sort of parts according drawings or samples

NAME STATIC COEF. (U) DYNAMIC COEF. (U) T FADING (ºC) WEAR RATE (mm3KWH) COMPRESSIVE STRENGTH (MPa)
FAG18/15 0.45±0.05 0.52±0.05 >450 30 (at 150 ºC) 160±5 PDF
SA80/M 0.60±0.05 0.50±0.05 >340 60 (at 150 ºC) 100±5 PDF
SA80/05 0.60±0.05 0.57±0.05 >350 80 (at 150 ºC) 102±5 PDF
GHFM 0.50±0.05 0.50±0.05 >350 30 (at 150 ºC) 190±5 PDF
SF-BU 0.43±0.05 0.35±0.05 >400 30 (at 150 ºC) 306±10 PDF
SF-MC2 0.45±0.05 0.40±0.05 >400 30 (at 150 ºC) 306±10 PDF
CR-2M 0.40±0.05 0.45±0.05 >350 20 (at 150 ºC) 126±5 PDF
TOP/05 0.60±0.05 0.50±0.05 >300 40 (at 150 ºC) 143±5 PDF

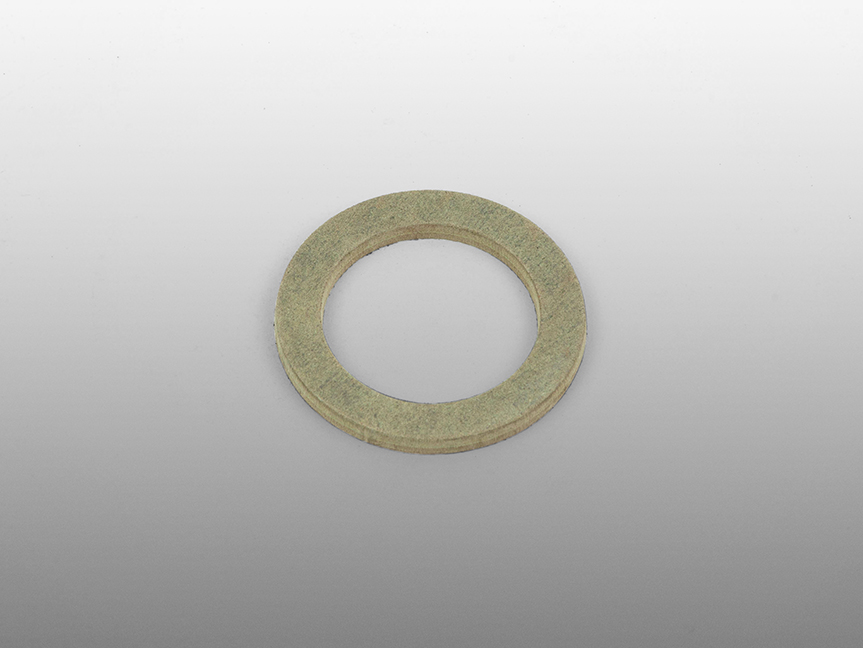

PRODUCT EXAMPLES
